Intellect - MT-44 TX Battery - IP854558-1S

Snel bekijken

(0)
Niet op voorraad
Intellect - MT-44 TX Battery - IP854558-1S

Intellect - MT-44 TX Battery - IP854558-1S

(0)
€ 21,95

A special LiPo battery from Intellect for the SANWA MT-44 transmitter.

Specifications

3.7v
3000mAh
53g
60 x 45 x 10mm

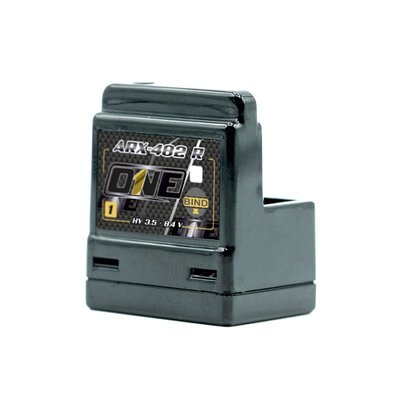

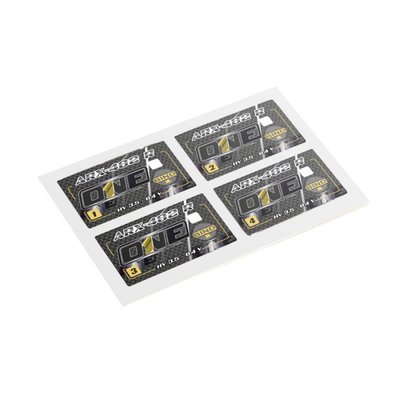

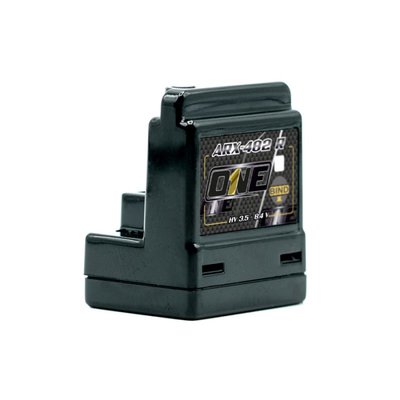

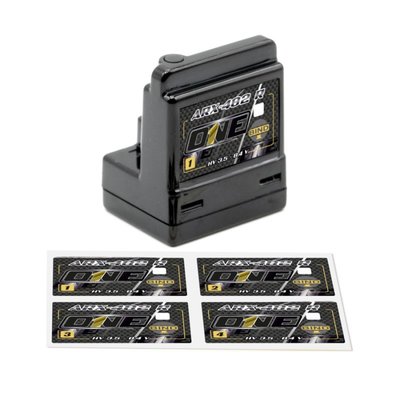

ONE ARX 482R Receiver for Sanwa - ONE-90209

Snel bekijken

Bestellen

(0)
Op voorraad
ONE ARX 482R Receiver for Sanwa - ONE-90209

ONE ARX 482R Receiver for Sanwa - ONE-90209

(0)
€ 49,95

ONE ARX 482R Receiver for Sanwa - ONE-90209

One is pleased to release the new ARX-482 R receiver. This 4 CH receiver with very small dimensions 23.6x18.4x28.4mm with only 7.3gr weight is compatible with practically all Sanwa radios including the newborn M17. Thanks to its technical features the One ARX-482 R is able to communicate with the transmitter in real time to monitor the voltage. It supports 1-2S Lipo power and stabilizes the voltage. The 4 CH plus battery input makes it the right choice for all categories.

SANWA EXZES ZZ Radio Set with RX472 - 101A32071A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA EXZES ZZ Radio Set with RX472 - 101A32071A

SANWA EXZES ZZ Radio Set with RX472 - 101A32071A

(0)
€ 599,90

EXZES ZZ

iconicon
iconicon



THE FASTEST RESPONSE OF M12S IS PORTED!
YOU CAN GET THE FASTEST RESPONSE WHICH
HAS ACHIEVED THE TRIUMPHS IN WORLD CHAMPIONSHIPS.



NOT ONLY HIGH RESPONSE BUT ALSO EXCELLENT LINEAR MOVEMENT
INCREASE THE DRIVING STABILITY IN THE FINAL MATCH.
HAVING NO EQUAL TO OTHER MODELS.




■SYSTEM: 2.4GHz Computer System FH4/FH3
■CH: 4CH
■TRANSMITTER: TX-452
■RECEIVER: RX472



[NEW FEATURES]
●Telemetry Mixing ●Template ●Vibrator ●Mode Select ●Throttle Slow ●Life-Battery Compatible ●Earphone Jack
●Ackerman Steering ●Racing Mode (Enhanced) ●Timer/Alarm (Enhanced) ●CODE10/Telemetry Assignment
●CODE AUX NAMING

[OTHER FEATURES]
●FSTN Large full dot LCD (128x256) ●Menu Selector ●ST, TH Spring adjustment ●Logger
●Feeling ●PC Link ●Monitoring ●Racing Mode ●Car Type Select ●CODE AUX
●Cross Movement Function System ●Bind ●Model Memory(50 models) ●Model Name(14 letters)
●LCD Contrast ●RF Mode Setting (FH4/FH3) ●Response Mode Setting(NOR/SHR/SSR)
●Model(Select/Copy/Clear/Sort) ●Vibrator ●Key Assignment (SW/TRIM/DIAL/LEVER)
●Buzzer(Selectable Scale/Volume) ●AUX Type Setting (AUX/AUX1/AUX2) ●Point AUX
●MOA AUX ●4WS AUX ●Trim Type(Center/Parallel) ●User Name(14 letters) ●Information
●Log(REC/RPM/VOLT/TEMP1/TEMP2/ST POINT/TH POINT/RX MODE) ●Battery Alarm
●EPA ●Trim/Sub Trim ●Servo Reverse ●Fail Safe (Radio Wave/Battery) ●Boost Menu
●Timer(Lap/Interval 1/Interval 2) ●Dual Rate(ST/TH/BR) ●Curve(EXP/ARC/CRV) ●Point Curve
●SPEED ●Anti-Lock Brake ●Brake Mixing ●TH Hold ●Ackerman Steering ●Compensation Mixing
(C-MIX1/C-MIX2) ●Safety Link ●Direct Model Select ●Language ●Customized menu ●Throttle Type
●Offset ●CH Set ●Calibration: Ex-Volume Adjustment (ST/TH/LEVER)
●Compatible Receivers: RX-482, RX-481, RX-472, RX-471 Dual-ID, RX-471W, RX-471, RX-462,
RX-461, RX-451R, RX-451, RX-381, RX-380







[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
●When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG series servo.
●In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work. Please make sure to use NOR Mode for them.
●SV-08, HV-10, HV-12, F2500 can be used for both NOR and SHR Mode.
Please use NOR mode for the above ESC.

[System Programming]
・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Manual(PDF)
・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Software(zip)
*Only for M12S / EXZES ZZ
Please use PC-LINK MANAGER2 for M12/EXZES Z

・Programming Version Upgrade for EXZES ZZ(Standard)・・・・・・v401205(zip)
※The above upgrade is only for EXZES ZZ.
M12S or M12 or Exzes Z cannot be upgraded.

SANWA M12S-RS Radio Set with RX482 - 101A32371A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA M12S-RS Radio Set with RX482 - 101A32371A

SANWA M12S-RS Radio Set with RX482 - 101A32371A

(0)
€ 349,90

M12S-RS









FURTHER EVOLUTION!!!
THE ADVANCE IN THE WORLD FASTEST RESPONSE


●Basic Performance, Response and Function same as M12S
●Racing Sport as additional Line-up
●Main difference from M12S
 ●Offset Bracket   / Originally installed
 ●Steering Spring  / Soft
 ●Battery       / Dry Battery (AA Battery x 4)
 ●Back Light    / Only White
 ●Ear-phone Jack / Deletion
 ●Vibrator      / Deletion
Optional Items
 ●Slant Bracket  / Deletion
 ●Grip                  / Deletion (Large & Small)
 ●Large Steering Wheel / Deletion
 ●Break Trigger Cover   / Deletion
 ●Trigger Angle Spacer  / Deletion
 ●Spring                       / Deletion
 ●Strap Hook                / Deletion
 ●HG Switch Harness    / Deletion
 ●Hex Wrench              / Deletion


【M12S-RS Functions】
●FSTN Large Full-dot LCD(128x256)●Switchabledriving position(Left/Right)●MenuSelection ●Built-in Antenna
●Car-type selection ●CODE AUX●Cross Movement ●Model Memory(50)●Model Name(14 Letters)
●Mode(lSelect/Copy/Clear/Sort) ●RF Mode(FH4T/FH3) ●Response Mode(NOR/SHR/SSR) ●Bind
●Servo Monitor ●KeyAssign(SW/TRIM/DIAL/LEVER)●Buzzer ●LCD Contrast ●AUX Type(AUX/AUX1/AUX2)
●Point AUX ●MOA AUX ●4WS AUX ●TRIM Type(center/parallel) ●Battery Alarm
●Log(REC/RPM/VOLT/TLM1/TLM2THPoint/RX Mode)●BootMenu ●User Name(14 Letters) ●Information
●EPA ●TRIM/SUBTRIM ●Servo Reverse ●Fail safe(Radio wave/Battery)●Time(rLap/Interval1/Interval2)
●Dual Rate(ST/TH/BR) ●Curve(EXP/ARC/CRV) ●Point Curve ●Speed ●ALB ●BR Mixing ●TH HOLD
●Ackerman ST ●C-MIX1/C-MIX2 ●Safety Link ●Custom Menu ●Direct Model Select ●TH Type ●Offset
●CH Set ●Calibration (ex-VR) : ST/TH/LEVER ●Mechanical Rudder Angle Adjustment




[SSL(SANWA Synchronized Link) Sysytem]

SANWA NEW SSL SYSTEM
●When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.

[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.

[Response Mode]
●Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERS series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG & PGS series servo.
●In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC.

[System Programming]
・PC-LINK MANAGER3 for M12S Application Manual(PDF)
・PC-LINK MANAGER3 for M12S Application Software(zip)
*Only for M12S
Please use PC-LINK MANAGER2 for M12/EXZES Z

・Programming Version Upgrade for M12S(Standard)・・・・・・V301205(zip)
・Programming Version Upgrade for M12S(Germany)・・・・V301306(zip)
・Programming Version Upgrade for M12S(Spanish)・・・V301406(zip)
・Programming Version Upgrade for M12S(Japanese)・・・・・V301506(zip)
※The above upgrade is only for M12S.
M12 or Exzes Z cannot be upgraded.

[M12S TEMPLATE]
・TEMP01_Super Vortex Zero(zip)
This is factory-programmed standard template. Please download here if you delete it.
・TEMP02_Super Vortex Zero TypeD(zip)
This is factory-programmed standard template. Please download here if you delete it.
・TEMP03_SGS-01C(CODE AUX2)(zip)
・TEMP04_SGS-01D(CODE AUX2)(zip)
・TEMP05_2R-MODE Quick ⇔ Mild(zip)

SANWA M17 Radio Set with RX491 - 101A32471A

Snel bekijken

Bestellen

(0)
Op voorraad
SANWA M17 Radio Set with RX491 - 101A32471A

SANWA M17 Radio Set with RX491 - 101A32471A

(0)
€ 549,90

SANWA M17 Radio Set with RX491 - 101A32471A

SANWA MT-44 Radio Set with RX-482 - 101A32171A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA MT-44 Radio Set with RX-482 - 101A32171A

SANWA MT-44 Radio Set with RX-482 - 101A32171A

(0)
€ 289,00

MT-44 Radio Set - w/RX-482


Introducing the all-new MT-44 4-channel 2.4GHz radio system. The follow-up model of the popular MT-4S offers a completely new case design with a large white back-lit display and an adjustable handle that can be popped out for transpiration and retracted for normal use. The telemetry transmitter offers a range of functions such as ambient temperature display, MicroSD card support for extended model memory, and it makes use of lightweight AAA 3-cell or 1S LiPo batteries for an ultra light weight. The MT-44 supports Sanwa’s SHR and SSR modulation and it is compatible with most FH4T and FH3 receivers. Other features include chargeability via an USB port and the radio system will become available including a range of receivers such as the RX-482, RX-481, RX-472 or RX-471.

- HIGH RESOLUTION DISPLAY
The same detailed dot as M12S enables so clear display.
Three kind of telemetry data can be displayed simultaneously because of gray scale display.

- BEST POSITION FOR STEERING / THROTTLE
Steering/Throttle is arranged in the best position for operation.
Drop Down is used as standard postion.

- THREE AAA BATTERIES
Three AAA batteries allows to be not only compact but also light.

- USB CHARGE
When used with optional Li-Po 1 cell battery, weight become lighter and it can be changed from USB input.

 ¦SYSTEM: 2.4GHz FH4T/FH3 ¦4CH ¦Transmitter: TX-471 ¦Receiver: RX-482
[New features]
?Movable Carrying Handle ?Quick Setup Wizard ?Safety Link ?Racing Mode ?Customized Menu ?Micro SD card-compatible ?Telemetry Switch ?Clock ?Circumstance Temperature Display ?CSV Output for LOG data ?CODE 10-compatible (Naming support) ?Simultaneous three telemetry data display ?Three AAA Batteries ?Li-Po 1 cell-compatible (USB change support)
[Other functions]
?Large full dot LCD monitor ?Wight LED back light ?Full adjustable trigger ?Telemetry function ?Built-in antenna ?Multi Menu Selector ?ST/TH Tension Adjuster ?Dual Rate ?End Point Adjuster ?Anti-lock Brake ?Servo Speed ?Offset ?Trim/Sub trim ?Servo Reverse ?Curve (Exponential /Adjustable Rate Control) ?AUX1 (Movement type for 3CH. it's the same as MT-4S function.) ?AUX2 (Movement type for 4CH. it's the same as MT-4S function.) ?Fail safe (power/ battery) ?Timer (lap/ interval/ down) ?Lap ?Logger ?20 model memory (when used with SD card, 250 models is available.) ?Model Name (12 letters) ?Model (Select/ Clear/ Copy) ?Direct Model Select ?Trim Type (Center/ parallel) ?Throttle Type (70:30 / 50:50) ?RF MODE Setting (FH4T/FH3) ?Response Mode Setting (NOR/SHR/SSR)* ?Key Assign(SW/TRIM/DIAL/LEVER)
?AUX TYPE SETTING
·CODE AUX (w/ Naming function)
·STEP AUX (Step 1 - 100)
·POINT AUX (2 - 6 point)
·4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
·MOA MIXING (FWD/4WD/RWD)
·AUX MIXING (ST MIXING/ TH MIXING)
?Buzzer(scale/volume) ?Transmitter Battery Alarm ?LCD Contrast ?Volume Adjustment ?Mechanical Rudder Angle ?Small Grip Pad
?Compatible Receivers:
*Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
*Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
?When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
?Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
?It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
?With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
?Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
?SSR mode can be used only by SRG series servo.
?In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC.
?About Version Update Program
?How to update firmware?
1 Please download the version update program from the below link;
?Version Up Program(zip)
Decompress the file.
2 Insert micro SD card into your PC.
3 Make the new folder named "MT-44" in the root of micro SD card.
4 Make the new folder named "update" in the above "MT-44" folder.
5 Copy and Paste the decompressed file "MT-44.prg" into the above "update" folder.
6 Remove micro SD card from your PC and insert it into MT-44 with MT-44 off.
7 Power on MT-44. And update the software as the following process.
SYSTEM > FIRMWARE > FIRMWARE [UPDATE]
In the firmware menu, both the current version and new version will be displayed.
*After updating the firmware, you cannot go back to the old firmware.



SANWA MT-S Radio Set with RX482 - 101A31971A

Snel bekijken

Bestellen

(0)
Op voorraad
SANWA MT-S Radio Set with RX482 - 101A31971A

SANWA MT-S Radio Set with RX482 - 101A31971A

(0)
€ 209,95

SANWA MT-S Radio Set with RX482 - 101A31971A

SANWA MX-6 Radio Set with RX-391W - 101A32571A

Snel bekijken

Bestellen

(0)
Op voorraad
SANWA MX-6 Radio Set with RX-391W - 101A32571A

SANWA MX-6 Radio Set with RX-391W - 101A32571A

(0)
€ 104,90

SANWA MX-6 Radio Set with RX-391W - 101A32571A

SANWA RX-391W Receiver - 107A41341A

Snel bekijken

Bestellen

(0)
Op voorraad
SANWA RX-391W Receiver - 107A41341A

SANWA RX-391W Receiver - 107A41341A

(0)
€ 54,90

RX-391W Receiver

●2.4GHz FH-E 3 ch (SPREAD SPECTRUM COMMUNICATION SYSTEM)
●Waterproof

※RX-391W is not compatible with telemetry function.

Frequency 2.4GHz FH-E
Nominal Input Voltage 4.8~6.0V
Weight 12.7 g
Channel 3 ch
Dimensions 31.9 x 26.5 x 14.5 mm
Compatible radio MX-6

SANWA RX-481 Receiver - 107A41251A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA RX-481 Receiver - 107A41251A

SANWA RX-481 Receiver - 107A41251A

(0)
€ 86,90

RX-481 Receiver


- 2.4GHz FHSS4/FHSS3 Spread spectrum system 4ch
- Built-in Antenna
- Sanwa Super Response (SSR) support

Frequency - 2.4GHz FHSS4/FHSS3
Channel - 4CH
Nominal Input Voltage - 3.7V~7.4V
Dimensions - 18.2x24.4x27.1mm
Weight - 7.1g
Compatible radio - M12, EXZES Z, M11X, EXZES X, MT-4S, MT-4, GEMINI X





SANWA RX-482 Telemetry/SSL Receiver - 107A41257A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA RX-482 Telemetry/SSL Receiver - 107A41257A

SANWA RX-482 Telemetry/SSL Receiver - 107A41257A

(0)
€ 89,90

RX-482 Telemetry/SSL Receiver


- 2.4GHz FHSS4 Spread spectrum system 4ch
- SSL support (ESC: Super Vortex Series etc.)
- Built-in Antenna
- Sanwa Super Response (SSR) support

Frequency - 2.4GHz FHSS4
Channel - 4ch
Nominal Input Voltage - 3.7V~7.4V
Dimensions - 18.2x24.4x27.1mm
Weight - 7.1g
Compatible radio - M12, Exzes Z, MT-4S, MT-4(No SSL support)

SANWA RX-491 Receiver - 107A41353A

Snel bekijken

Bestellen

(0)
Extra levertijd
SANWA RX-491 Receiver - 107A41353A

SANWA RX-491 Receiver - 107A41353A

(0)
€ 87,90

SANWA RX-491 Receiver

- Compact receiver
- Waterproof
- Plug in Bind
- Short Antenna

- 2.4 GHz FHSS5 Spread Spectrum System 4ch
- Compatible with Telemetry
*Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only
combine with SUPER VORTEX series
- Compatible with SSL (SUPER VORTEX Series, etc...)
- Ultra Response Mode (SUR)
- Waterproof
- The smallest and most light receiver in the class

Frequency - 2.4 GHz FHSS5
Channel - 4ch
Nominal Input Voltage - 3.7~7.4 V
Dimensions - 23.0 x 23.2 x 14.0 mm
Weight - 5.3g
Compatible radio - M17

SANWA TX Antenna - 2.4GHz - 107A30743A

Snel bekijken

Bestellen

(0)
Op voorraad
SANWA TX Antenna - 2.4GHz - 107A30743A

SANWA TX Antenna - 2.4GHz - 107A30743A

(0)
€ 19,95

SANWA TX Antenna - 2.4GHz - 107A30743A

Fits - M11X, Exzes-X
