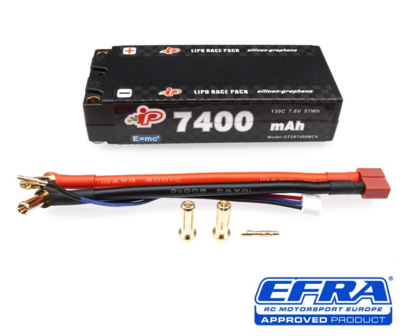

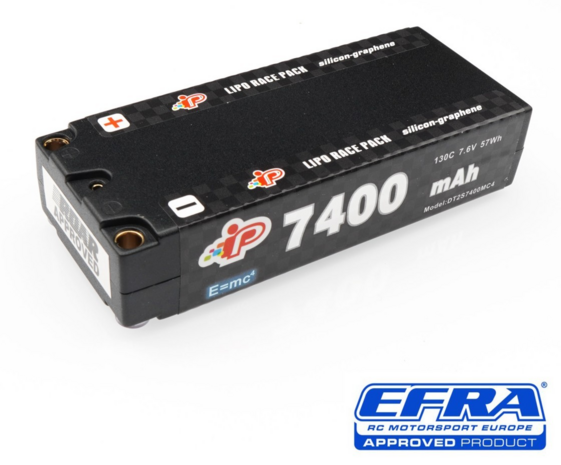

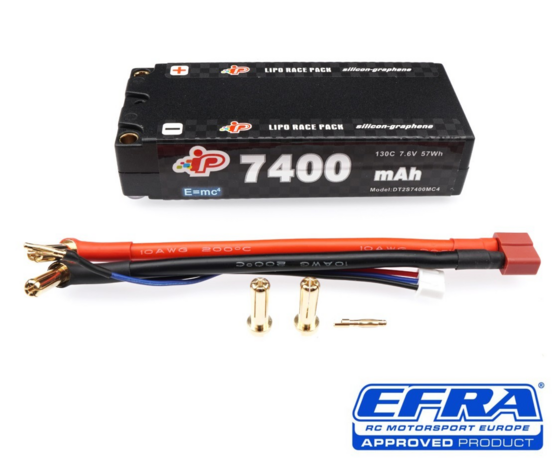

Intellect MC4 7400mAh 120C 7.6V Graphene 113mm Mid-Shorty Pack LiHV
High capacity stick pack for long finals and maximum consistency
With the 2026 specification of the MC4 series, Intellect further expands its line of 2S competition packs. The DT2S7400MC4 L113 stick LiHV pack is aimed at serious racers who require a combination of very long runtime, strong punch and a stable voltage curve in the classic 2S stick format.
With a capacity of 7400mAh and a 130C discharge rating, this LiHV stick pack delivers strong acceleration and high average voltage even in long finals and on demanding high grip tracks. Thanks to its 113 mm length, the pack is also a very attractive option for various 1/8 electric buggies such as the Team Associated RC8B4 and the Xray XB8E 2025, and it is increasingly being used in additional vehicles and classes.
The state of the art silicon graphene cell technology results in very low internal resistance, reduced heat build up and a robust cycle life. As a LiHV pack it can be charged up to 4.35V per cell at a nominal voltage of 7.6 V, which provides a noticeable performance boost at the start of the run and consistent power delivery all the way to the finish line.
Main features
- High capacity 7400mAh stick pack for long finals and demanding track layouts.
- High Voltage LiHV chemistry with charge end voltage up to 4.35V per cell for increased RPM and torque.
- Silicon graphene 2026 spec cell technology with very low internal resistance and improved temperature behavior.
- 130C discharge rating for extreme current capability and strong punch on throttle.
- L113 stick format for easy fitment in 1/10 chassis and compatibility with many 1/8 electric buggies that accept 113 mm packs.
- 5mm tubes for robust high current connection and low loss power transfer.
- Race legal for EFRA, BRCA, ROAR and IFMAR sanctioned competition.
Technical data
| Manufacturer / model |
Intellect MC4 LiHV 2026 Spec DT2S7400MC4 |
| Type |
LiPo / LiHV (High Voltage) |
| Configuration |
2S1P (2 cells) |
| Capacity |
7400 mAh |
| Nominal voltage |
7.6 V |
| Discharge rate |
130C |
| Dimensions (L x W x H) |
113 x 47 x 25.1 mm |
| Connector |
5mm tubes |
| Weight |
260 g |
| Cell technology |
Silicon graphene |
| Application |
1/8 E buggy (for example Team Associated RC8B4 and Xray XB8E 2025, where 113 mm packs are supported) |
| Approvals |
EFRA, BRCA, ROAR, IFMAR |
Charging and storage information
Never store the pack fully charged or fully discharged. For best service life we recommend a storage voltage of about 3.80V to 3.85V per cell. Avoid heat and direct sunlight during storage. A cool, dry place is ideal. A hot car trunk is not a suitable place to store LiHV packs.
For maximum life we recommend charging at 1C. Higher charge currents can noticeably reduce the life and performance of the cells and may worsen cell balance over time.
Safety note: Always use a suitable LiPo safety bag while charging, for example the RUDDOG HD LiPo Charging Bag (180x80x80mm).
Installation recommendations
Make sure the pack does not sit directly against hot components such as the motor to avoid unnecessary heat transfer. To keep motor and pack cool we recommend using an additional fan, for example:
If the connectors show heavy wear, we recommend replacing the plugs on the speed controller in time to avoid unnecessary resistance. Matching replacement connectors can be found in the RUDDOG Distribution product range.
Warranty
All packs are covered by the statutory warranty period. Please note that improper use, wrong storage or mechanical damage can lead to loss of warranty claims.
