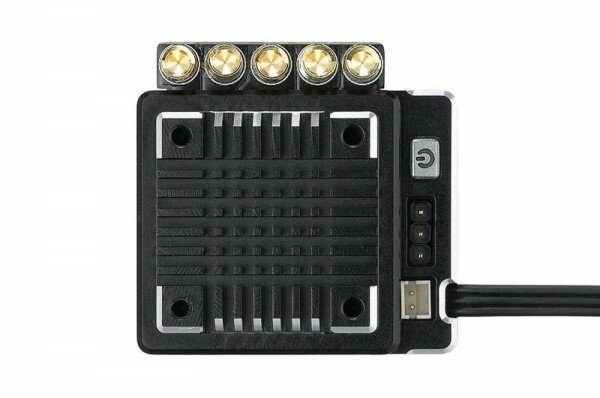

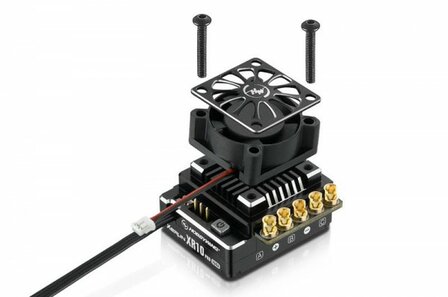

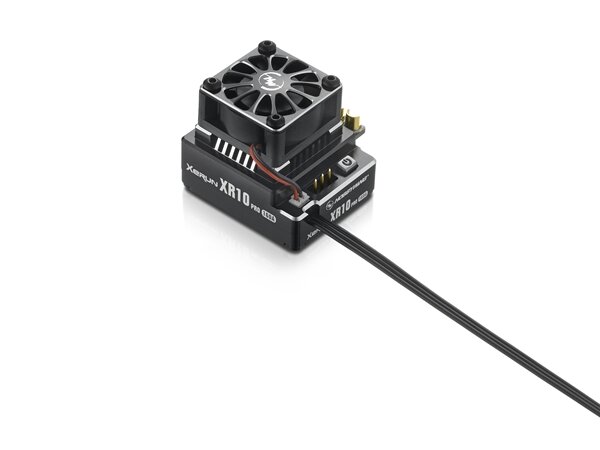

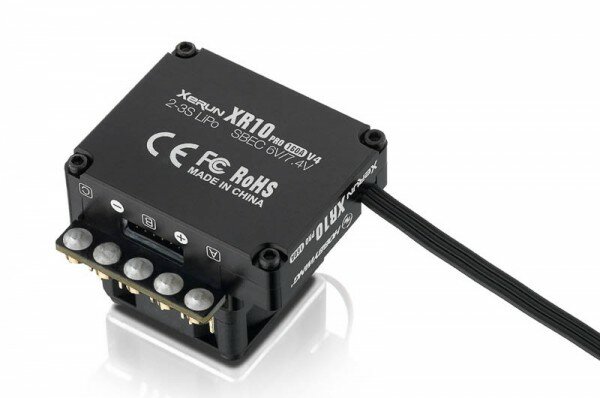

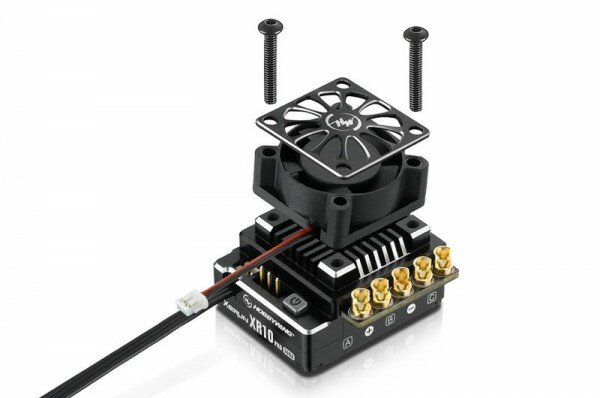

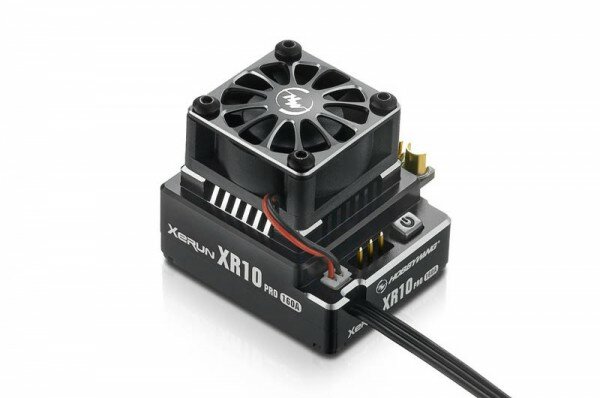

Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600

Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600
Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600 Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600
Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600
0 Review | Review toevoegen
Product information "Hobbywing Xerun XR10 Pro Brushless ESC Black 160A, 2-3s LiPo" All the products in this series are sensored brushless power systems for professional races range from 1/12th scale t

Standaard levertijd

enkele werkdagen

€ 199,95
Prijs per stuk

Voorraad :

Aantal:
Bestellen

Op verlanglijst
Product information "Hobbywing Xerun XR10 Pro Brushless ESC Black 160A, 2-3s LiPo"

All the products in this series are sensored brushless power systems for professional races range from 1/12th scale to 1/8th scale, from Modified to Stock. Their excellent performance, reliable structure design and others definitely can meet top-level races strict requirements against products performance and quality.
The XR10 Pro is a real and maybe THE ESC for 1/10 competition use. Doesn`t matter if On-Road touring cars or Off-Road Buggies, the feeling and power with this ESC is amazing. With outstanding features like Data-logging Function, adjustable Throttle and Brake frequencies, powerful BEC and a max. const. current of 160A.

High Power Output
Continuous current of 160A and peak current of up to 1200A guarantees a stable and high power output during competitions.

Special Design for Top Racing
Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

Programming / Upgrading / Data reading wirelessly
With Hobbywings WiFi Express module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).

Efficient Heat Dissipating System
The aluminum casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

High current/voltage BEC
The built-in switch mode BEC with a maximum output of 4A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan for maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Advanced and Secure Electronic Switch
The XR10 Pro ESC features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Innovative data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyze the recorded data via a the LCD program box or WiFi module after each use.


Specifications



  • Type
    • Scale: 1/10th
    • Brushed/Brushless: BL
    • Sensored/Sensorless: SD
    • Waterproof: No
  • Specifications
    • Cont./Peak Current: 160A/1200A
    • Input: 2-3S LiPo / 4-9 Cell NiMH
    • BEC Output: Swich Mode: 6V / 7.4V max. 4A
  • Wires & Connectors
    • Input Wires: Black-12AWG-200mm*2
    • Output Wires: Black-12AWG-200mm*3
    • Input Connectors: No
    • Output Connecotors: No
  • Fan
    • Size: 25.0x25.0x10.0mm
    • Voltage Range: 5-7.4V
    • Powered by: Powered by BEC
  • ESC Programing via
    • LCD Program Box: Supported
    • WiFi Module: Supported
    • Program Port: Separate Program Port
  • Size & Weight
    • Size: 37.5x30.9x31.6mm(w/Fan & Fan Shroud)
    • Weight: 95g(w/ Wires)
  • Applications
    • Motors: SL BL Motors / SD BL Motors
    • Vehicles: 1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler
    • KV Rating/T Count:
      • 2S LiPo/6S NiMH: (Touring Car) T=3.5T, (Buggy) T=4.5T.
      • 3S LiPo/9S NiMH: (Touring Car) T=6.5T, (Buggy) T=8.5T.

Product Comparison

  XeRun XR10 PRO 160A XeRun 120A V3.1
Hardware
Cont./Peak Current 160A / 1200A 120A / 760A
BEC Voltage/Current 6V/7.4V,4A 6V,3A
BEC Voltage Regulation    Switch Mode Linear Mode
Fan is Powered by Powered by the BEC (prolongs the service life of the fan)          Battery
Fan shroud Yes No
Fan Speed High Normal

Software
Remote Off Enabled/Disabled Switchable Enabled (Default)
(Motor) Drive Mode Full Sensored/ Sensored or Sensorless Hybrid Switchable Full Sensored
COAST 0-20% Adjustable No
PWM Drive Frequency 1K/2K/4K/8K/12K/16K Adjustable Not Adjustable
Brake Frequency 0.5K/1K/2K/4K Adjustable Not Adjustable
Brake Mode Linear/Traditional/Hybrid Adjustable Not Adjustable
Boost Timing Activation RPM/Auto Adjustable Not Adjustable
