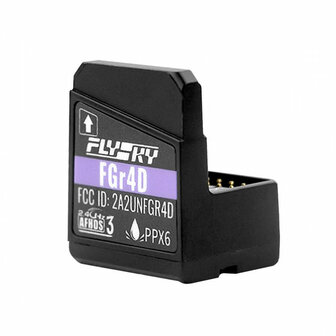

Product information "Flysky FGr4D AFHDS3 Receiver 4CH"
The bidirectional FGr4D receiver is equipped with 4 channels and runs the AFHDS3 protocol. Thanks to the two built-in antennas and the compact design, there are numerous possible applications in the smallest of spaces. In addition to the four channels, the receiver also offers 5 functional interfaces that can be configured with different signal types such as i-BUS2, S.BUS, i-BUS and PPM. The FGr4D is also waterproof according to the PPX6 standard.
Technical Specifications


			| PWM-Channels: | 4 |

			| RF: | 2.4GHz |

			| Protocol: | AFHDS 3 |

			| Antennas: | Dual (internal) |

			| Input Voltage: | 3.5-9V |

			| Output: | PWM/PPM/i-BUS/S.BUS/i-BUS 2 |

			| Temperature: | -10°C to +60°C |

			| Max. Humidity: | 20%-95% |

			| Update: | Yes, online |

			| Dimensions: | 30.3x25.8x20mm |

			| Weight: | 7.2g |

			| Suitable for: | Cars, Boats |

			| Compatible Transmitter: | all AFHDS3-Transmitter |
