HUDY PURE TUNGSTEN WEIGHT 5g - 293081

HUDY PURE TUNGSTEN WEIGHT 5g - 293081

HUDY PURE TUNGSTEN WEIGHT 10g - 293082

HUDY PURE TUNGSTEN WEIGHT 10g - 293082

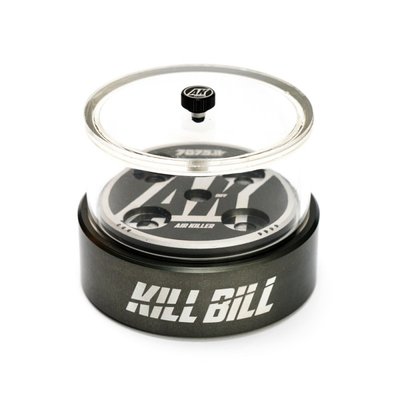

Air Killer KILL BILL Awesomatix Special Edition - 7075-KBAWX

Air Killer “Kill Bill” for Awesomatix.


The ammo stand has been redrawn to contain Awesomatix ammo and diff, the lowest cylinder speeds up the vacuum process and the new titanium colour is combined to the optionals of the car.

After the great success of the Air Killer, used by the best drivers in the world and that has attracted other companies in investing in this kind of products, 7075.it is excited to announce the new model of the Air Killer series, the “Kill Bill”.

The new vacuum system Kill Bill is beautiful and powerful like the previous Air Killer, but now even more compact and cheaper.

Kill Bill has been created with an even more appealing design reducing its dimensions in order to make it more handy and practical.

Kill Bill is available in the On Road and Off Road versions.

"Kill Bill” is a product entirely design and built in Italy and its chassis has been forged by a whole 7075 Alu piece.

The chassis accommodates internally all the components necessary for the operations.

Each product has been assembled and checked one by one.

The vacuum power of the "Kill Bill" Air Killer allows shocks or diffs oil changes in a very short time.

How it works:

- Refill the shocks or the diffs following the standard procedures.
- Place them in the holes of the apposite stand and place in the middle of the "Air Killer”.
- Place the cylinder in its dedicated groove and check that the upper valve above the plexiglass cylinder is correctly screwed. At this stage it just needs to apply a slight pressure on the cylinder in order to ensure a better grip to the gasket.
- PRESS and HOLD the start button until it reaches the maximum vacuum. The max vacuum will be indicated with a change in the engine noise.
- For this procedure it will need 30 secondo for the On Road version and 45 for the Off Road one.
- The time to wait it depends only by the viscosity of the oils:
- Liquid oils will take less time, oils with high viscosity instead will need few more minutes.
- Once the vacuum is over, the upper valve located above the cylinder has to be unscrewed. It is advisable to unscrew it gentle, in order to avoid a pressure wave that could cause an oil leakage from the shocks or from the diffs.

Intellect - MT-44 TX Battery - IP854558-1S

A special LiPo battery from Intellect for the SANWA MT-44 transmitter.

Specifications

3.7v
3000mAh
53g
60 x 45 x 10mm

XRAY ALU FULLY ADJ. BATTERY HOLDER + WEIGHT FOR SHORTY BATTERIES - 306195

XRAY ALU FULLY ADJ. BATTERY HOLDER + WEIGHT FOR SHORTY BATTERIES - 306195

XRAY X1 FULLY INDEPENDENT REAR WING MOUNT SET - 373522

This wing mount set allows to install rear wing fully independently from the rear pod plate. When the rear suspension is moving the wing stays in the same position which helps to improve car stability and increases traction, making the car easier to drive in all conditions. The wing mount plate features holes for wing mounting in exactly the same positions as the standard wing mount. Can be used either with the rear gear differential or ball differential.

The wing mount has multiple positions which allow higher or lower mounting of the rear wing to adapt to traction, conditions, and racing surfaces.

When traction is very low – mainly on asphalt surfaces – the upper holes allow a higher wing mounting position to generate more stability and traction off-power.
When traction is very high – mainly on carpet surfaces – the lower holes allow a lower wing mounting position to decrease traction rolling and make the car easier to drive.

Machined from premium 2.5mm graphite material.


XRAY ORANGE Offset Spur Gear 110T : 64 - 305880-O

XRAY ORANGE Offset Spur Gear 110T : 64 - 305880-O

XRAY ORANGE Offset Spur Gear 96T : 64 - 305866-O

XRAY ORANGE Offset Spur Gear 96T : 64 - 305866-O

XRAY T2 008 Fixed Pulley 16T (2) - 305576

Precision-molded 16T layshaft pulleys for XRAY T2’008, includes composite shim. Standard pulleys for XRAY T2’008 EU Rubber-spec Edition. Set of 2.

ONE ARX 482R Receiver for Sanwa - ONE-90209

ONE ARX 482R Receiver for Sanwa - ONE-90209

One is pleased to release the new ARX-482 R receiver. This 4 CH receiver with very small dimensions 23.6x18.4x28.4mm with only 7.3gr weight is compatible with practically all Sanwa radios including the newborn M17. Thanks to its technical features the One ARX-482 R is able to communicate with the transmitter in real time to monitor the voltage. It supports 1-2S Lipo power and stabilizes the voltage. The 4 CH plus battery input makes it the right choice for all categories.

XRAY T4'19 GRAPHITE + BRASS FULLY ADJUSTABLE BATTERY HOLDER - 306198

Fully adjustable brass battery holder allows to move the batteries in all directions - front/rear and also left/right. The adjustable battery holder allows for easy and comfortable weight transfer adjustment. The front/rear weight balance can be adjusted in 4mm range. The brass material adds extra 7.5g weight for additional weight balance adjustment of the battery side of the car.

The battery holders allow to mount the battery tape over the top of the battery only without the instalment of the tape under the chassis which allows increased flex of the chassis and as such helps to generate more traction. Thanks to the chassis-free instalment of the tape the ride height of the car can be slightly decreased as there is no more tape under the chassis.

The adjustable holder and the battery backstops are CNC-machined from brass material and the battery holders are machined from premium lightweight graphite material.


XRAY T4'19 GRAPHITE + ALU FULLY ADJUSTABLE BATTERY HOLDER - 306196

Fully adjustable aluminum battery holder allows to move the batteries in all directions - front/rear and also left/right. The adjustable battery holder allows for easy and comfortable weight transfer adjustment. The front/rear weight balance can be adjusted in 4mm range.

The battery holders allow to mount the battery tape over the top of the battery only without the instalment of the tape under the chassis which allows increased flex of the chassis and as such helps to generate more traction. Thanks to the chassis-free instalment of the tape the ride height of the car can be slightly decreased as there is no more tape under the chassis.

The adjustable holder and the battery backstops are CNC-machined from lightweight aluminum and the battery holders are machined from premium lightweight graphite material.


Dash Silicon Wire 14AWG 1m - DA-771005

Dash Silicon Wire 14AWG 1m - DA-771005

Mon-Tech Racer2 Touring Electric Car Clear Body 190mm - 019-006

Mon-Tech Racer2 Touring Electric Car Clear Body 190mm - 019-006

#PHUB Magic Grip - Pink - PH47

Presenting Magic Grip!

A new era of additive is coming to your line-up! This amazing additive will offer you unlimited traction and grip like never seen before, will suit all your tracks and will improve your lap times as well as your driving experience.

Tested by drivers like Ronald Völker, David Ronnefalk and Viljami Kutvonen proves this additive to be worth giving a try!

The additive comes in a 60mL bottle with foam for an easy apply on your tyres. It offers grip depending on the time applied to your tyres (see our Grip Level Table).

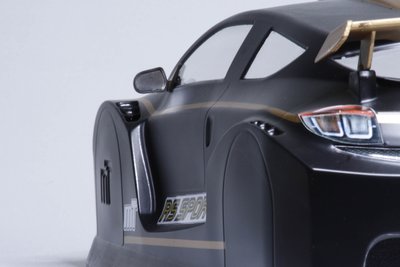

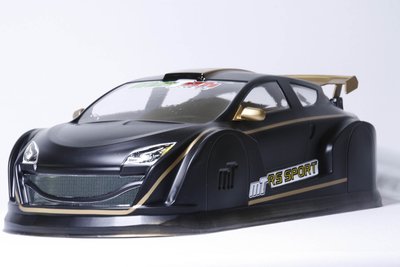

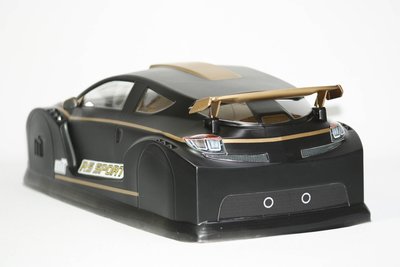

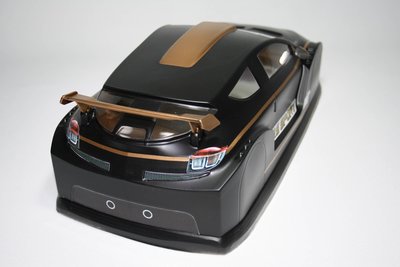

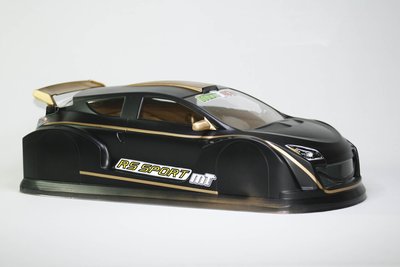

Mon-Tech RS SPORT 190mm - 012-004

Mon-Tech RS SPORT 190mm - 012-004

Rush 36X Pre-glued Tire 36deg (4Tires with wheel and inserts) - RS-PGA36X

Rush 36X Pre-glued Tire 36deg (4Tires with wheel and inserts) - RS-PGA36X

MobGums 1/12 dishers rear tyres silver compound for ETS carpet - MOBR135

MobGums 1/12 dishers rear tyres silver compound for ETS carpet - MOBR135

Volante V5 Tough 1/10 36R TC Rubber Tire Preglued 4pcs - VT-V5T-PG36R

Product information "Volante V5 Tough 1/10 36R TC Rubber Tire Preglued 4pcs"
The new "T" type tire carries the same high quality combination from the original V5, however with a new minimal air gap and new "Tough" rubber content. Making this the ideal tire choice, if longevity and stability is your preference.
Best performs at outdoor asphalt tracks.

The latest establishment from Volante's tyre development brings you the premium Volante V5 tyre. Developed by Word Champions, the Version 5 combines maximum speed with maximum longevity.
Tested on a variety of tracks around the world, the V5 provides superior traction to any other tyre, whilst limiting the "drop off" experienced by many other tires on the market. The tyre and wheel combination is perfectly true, meaning no vibration when driving. Minimum excess moulding material makes it unnecessary to "sand" or "cut" the line from now, making it less time consuming and risky preparing new tires.
Volante V5's will be able to provide you with premium traction and longevity in any condition.

MobGums 1/12 dishers front tyres white compound for ETS carpet - MOBF035

MobGums 1/12 dishers front tyres white compound for ETS carpet - MOBF035

ZooRacing DOGSBOLLOX Standard - ZR-0005-07

The DogsBollox body shell for 190mm touring cars is ZooRacing’s third touring car body shell. Developed as an outright low centre of gravity body the lid features a 6mm lower trunk section – including the rear wing – for greater corning speeds, a more agile handling and less weight distribution changes. In addition to the low rear end the body also offers a super low front end which further adds to the aggressive LCG aero package. When run on high to very high-grip surfaces drivers will experience a lot less traction rolling issues even when using the body in the new 90g ETS weight rule configuration.

The body is an evolution of the PreoPard and thus offers exceptional overall downforce and stability, making it ideal for the higher speeds of the 13.5T Pro Stock and Modified classes. The shell offers several aero features, such as a recessed roof section for less drag, that channels the airflow towards the rear wing for great rear end stability at both low and high speeds while the forward placed cabin and the specially shaped front end produce more steering compared to the ZooZilla as well as greater rotation in corners for greater corner speeds and a more nimble handling.

The body is outfitted with several trick anti-tuck features such as structured side skirts and a clever rear end design including reinforcement ribs on the trunk lid, all of which add to the overall aerodynamics and looks while greatly preventing body tucks without the need for additional reinforcements. Adding to the whole package is the recessed roof section that not only adds visual impact but also greatly improves overall stability – something that comes in handy especially when running the body in ultra lightweight configuration.

Other hot features include large wheel arches that allow the body to be placed up to 4mm to the front for increased steering reaction or up to 4mm to the back for increased rear stability – making it 8mm in total. All this can be done without having to fear tyre rubs or unsightly cut out wheel wells. The body, designed using the latest CAD techniques also features a 100mm grid for the rear body mounts, ensuring highly precise body placement and mounting.

The DogsBollox 190mm body shell comes moulded from high-quality polycarbonate and it is available in two thicknesses: a lightweight 0.5mm variant that will weigh in at around 55g cut and including wing while the standard thickness 0.7mm variant will come out at around 83g cut and including wing - meaning the latter will easily make the new 90g ETS rule.​

Part of the package are also the revolutionary 2-step window masks that will ensure window frames of Pro quality. In a first step all windows are masked using the Step 1 masks. After the painting of the body is completed, the masks will be removed and replaced by the slightly smaller Step 2 masks that leave the window frames exposed and ready to be painted in your favourite colour. The result is highly precise without the need to pre-cut or in-body-cut the window masks, ensuring greater satisfaction and less chances of creating predetermined breaking points. The body package is rounded out by high-quality wing mounting hardware and a detailed sticker sheet including grille, head and tail lights.


Features:

– CAD designed
– Specialised LCG body shell for technical high to very high-grip tracks. Lots of steering, high overall downforce for increased rotation and faster cornering especially in 13.5T Pro Stock and Modified racing classes and when running in medium to high-grip conditions
– Super-low and steep front end
– Recessed roof to channel the airflow and for greatly improved structural stability thanks to static reinforcement
– Reinforcement ribs on the trunk
– Structured rear end for anti-tuck capabilities
– Large wheel arches allow the body to be placed 4mm front or back (8mm in total)
– Large wheel arches ensure the tyres will not rub in whatever position
– Anti-tuck capabilities with structured side skirts
– Static reinforcement on the hood. Especially useful when running the ultra lightweight variant
– 0.5mm ultralight body weighs in at about 55g cut & including wing
– 0.7mm standard body weighs in at about 83g cut & including wing
– Detailed decal sheet
– 2-step window masks
– Wing mounting hardware
– 100mm grid on the rear truck lid for easy and convenient body mounting
– Designed to meed GBS rules
– EFRA approved
– BRCA approved

MobGums 1/12 dishers rear tyres white compound for ETS carpet - MOBR335

MobGums 1/12 dishers rear tyres white compound for ETS carpet - MOBR335

Schumacher Sorex Glued 28R+JB+Revlite24 pk4 - XG-28JB

Schumacher Sorex Glued 28R+JB+Revlite24 pk4 - XG-28JB

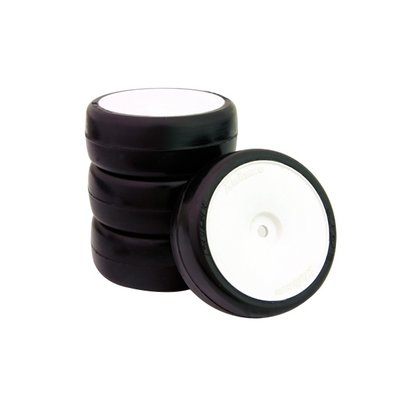

Ride 1/10 Slick Tires Precut 24mm Pre-glued with 16 Spoke Wheel White 4pcs - 24025PG

Ride 1/10 Slick Tires Precut 24mm Pre-glued with 16 Spoke Wheel White 4pcs - 24025PG

Sunpadow Lipo Battery 8400mAh 7.4V 2S 120C/60C (long Pack) - S684064

De NIEUWE Sunpadow 2S High-Volt LiPo-batterij met 8400 mah en 120 C bij 7,4 V is nu verkrijgbaar! Een geweldige krachtbron voor alle 1:10 Touring Car-klassen! De enorme kracht van het accupakket kan je elke tiende van een seconde extra geven! We raden dit pakket speciaal aan voor Stock Spec-raceklassen! Sunpadow Teamdriver Alexandre Duchet nam de TQ en de Win in Pro Stock op de eerste verschijning van de batterij tijdens de ETS Finale in de Hudy Arena!

Voltage Input: 7.4V
C-snelheid: 120C (62.16wh)
Capaciteit: 8400 mah
Afmetingen: 139 x 47 x 25,1 mm
Gewicht: 324 g
Aansluitingen: 4 mm

XRAY ALU LOWER 2-PIECE SUSPENSION 0.25 ECCENTRIC HOLDER - 303718-O

Authentic XRAY alu rear lower suspension holder for the REAR of the front bulkhead, with 0.25° eccentric suspension mount holes. The eccentric holder stands allow more precise toe-in setting with 0.25° increments.  Suspension holders are CNC-machined from premium Swiss 7075 T6 aluminum, and provide the lightest & strongest possible support framework for the car.



PROTOFORM Europa Clear Body for 190mm FWD Class - 1565-25



PROTOform is excited to bring our first-ever body dedicated to front wheel drive touring cars: meet the Europa.

Europa takes styling cues from popular European hot hatches competing in full-scale TCR classes around the globe. With aggressive fender flares and a slammed hatchback roofline, the Europa is bound to make a statement at your track. At the rear of the body, molded in wing platforms support the add-on nylon wing struts and wing to complete the super scale look. Designed and produced using the latest in 3D CAD and 5-axis CNC technology, Europa’s detailing, symmetry and overall quality of surfaces is second-to-none.

This body will fit any popular 190mm touring car chassis. It’s produced in our high-quality, lightweight polycarbonate for a low center of gravity, and includes a detailed decal sheet with windshield header and number plates, window masks, and paint-then-peel overspray film.


XRAY T4F - 2019 SPECS - 1/10 LUXURY ELECTRIC FWD TC - 300200

T4F Platform.

The T4F – a premium, professional, high-competition RC car for the most demanding racers, developed with attention to detail and backed by premium service & support.



“Using our world championship winning T4 platform, we worked with the XRAY R&D team with great input of Harald Schmittken to create the finest, highest-performing FWD electric touring car sharing the XRAY's commitment to engineering perfection, design, performance and support; all made possible by state-of-the-art in-house manufacturing.”

Martin Hudy
XRAY T4F designer

Philosophy.

With XRAY's uncompromising design philosophy bringing everything together to make the best FWD touring car, the T4F captures the unique XRAY character, born of precision craftsmanship, highest attention to detail, and using the finest materials.

Made in Europe.

Designed, developed, and fully manufactured in-house at the XRAY factory in Slovakia, Europe, using  precision German and Swiss machines and premium European materials, the T4F is crafted with XRAY's signature attention to detail by our dedicated production specialists.

Chassis.

The T4F is super reactive and easy to control thanks to the high traction from the ultra-narrow chassis design.

The 2.2mm thick chassis is CNC-machined from premium-grade graphite material and features  pre-drilled mounting locations for chassis weights and an adjustable battery holder to tune the T4F balance for any situation.

Top Deck.

The included 2.0mm graphite top deck works great in most conditions with the standard graphite chassis. The shape of the rear portion of the top has been specifically designed to achieve more traction and in-corner steering.

Battery Holders.

Smart battery holders are specifically designed for LiPo batteries and are reinforced for harder impacts. The battery holders prevent the batteries from moving under racing conditions and crashes.

The kit includes two different composite holders for multiple battery sizes and orientations.

Adjustable battery holders are available in aluminum or a heavier brass alternative that functions as an additional chassis weight.

Weight Balance.

The T4F chassis accommodates standard or short LiPo battery packs with 4 different mounting alternatives to adjust the proper weight balance.

Bulkheads.

The super small and lightweight bulkheads are positioned towards the chassis centerline to provide maximum traction, steering, and proper balance.

To accommodate the ball-bearing anti-roll bar mounting system, the bulkheads feature integrated mounting locations to hold the anti-roll bar collars for precise and smooth operation.

All bulkhead parts are CNC-machined from premium Swiss 7075 T6 aluminum and are designed to provide the lightest and strongest support framework for the car.

Motor Mount System.

The design of the motor mount allows for super easy installation of the motor using only 3 screws. The motor mount is designed to keep the CG of the car as low as possible.

Drivetrain.

The front wheel drive system features XRAY’s proven Gear Differential with a 38T pulley and a super lightweight, hollow aluminum layshaft with 16T drive pulley for an efficient internal ratio of 2.375.

Easy Front Diff Access.

Access to the front differential is quick and easy via the removable upper clamps.

Suspension.

From the narrow arms, to the compact front and rear suspension blocks, through the small and robust steering blocks, every suspension part has been designed to provide responsive handling characteristics in all racing conditions.

The ultra-lightweight suspension parts are molded from a special composite material to reduce un-sprung weight and still retain the durability to withstand the rigors of high-performance racing.

Using eccentric bushings inserted into the aluminum suspension holders, combined with adjustment shims and multiple mounting locations, the T4F suspension geometry is completely adjustable.

Suspension Holders.

Used primarily for adjusting the inner hinge pin geometry, the suspension holders also affect vehicle stabiltiy and traction through their impact on chassis flex

• FF - Front of the front suspension – 1-piece

• FR - Rear of the front suspension – 1-piece for stability, easy to drive in all conditions but especially under high-traction conditions. Optional 2-piece holders give increased in-corner steering, and are recommended for use on asphalt and low-traction track conditions.

• RF - Front of the rear suspension – 2-piece for maximum rear traction.

• RR - Rear of the rear suspension – 1-piece for stability and better rotation.

Suspension Arms.

The specially-formulated composite material results in a very lightweight suspension arm that can withstand the rigors of high-performance racing. Features include a single optimized shock mounting position and integrated anti-roll bar mounts.

The included composite suspension arms generate more overall traction, making the car easier to drive and increasing stability. The graphite suspension arms for higher traction tracks are available separately.



Graphite Stiffeners.

XRAY’s SFA™ graphite stiffeners allow for super-quick suspension flex adjustment to easily adjust the traction of the car in various track conditions.

The smart graphite stiffeners can very quickly adjust the car to current conditions without changing suspension arms. At the beginning of a race event when traction is low, the arms are used without the SFATM graphite stiffeners. When the traction increases, the suspension can easily be made stiffer by mounting the SFATM graphite stiffeners for more stability and easier driving characteristics. The graphite stiffeners give the car maximum stability in chicanes and allow for easier and smoother steering.

Made from 1.6mm thick high-quality CNC-machined graphite material, the stiffeners can be easily mounted or removed by only a few screws whenever needed.



C-hubs.

The C-hubs are available in all standard caster angles (2°, 4°, 6°) and are also available in 4 different hardnesses for various racing conditions.

The C-hubs feature large openings for quicker assembly and maintenance  of the ECS drive-shafts. The entire ECS assembly can be easily inserted/removed through the C-hub without the need for disassembly. The added clearance also reduces collisions between the drive-shaft and the C-hub in crashes.

The medium 4° C-hubs are included in the kit which are suitable for the most common track conditions.



Steering Blocks.

The small and tough steering blocks each feature two Ackermann positions. The front steering blocks also feature small but robust 5x10x4mm ball-bearings to minimize unsprung weight.

The hard steering blocks are included in the kit which are suitable for the most common track conditions.

The steering blocks are available in three different hardnesses to adjust for various racing conditions.



Rear Uprights.

The rear uprights are available in several versions for multiple suspension tuning choices. The Hard, 0°, 2-hole upright is included in the kit for its versatility, suitable in a wide range of conditions.

All molded rear hubs feature small but reliable 5x10x4mm ball bearings to minimize un-sprung weight.

The rear uprights are available in 3 different material formulations blended for different needs depending on traction levels. The hubs are also available with 0° or 1° of outboard toe for different combinations of inboard and outboard toe. Please note that 1° hubs are L/R side specific, while the 0° blocks will fit either side of the suspension.

In situations where the inner and outer ball joint positions of the stock hub create too much or too little chassis roll, the 1-hole hub provides an additional midpoint location to compliment the standard 2-hole adjustments.



Steering System.

The dual-arm steering system is supported by six ball-bearings and runs on aluminum stands. Ackermann is easily adjusted by inserting shims between the steering plate and steering rods. The steering system has a low mounting position for the steering linkage, giving the car easier handling going into corners. More aggressive handling is easily accomplished by inserting shims between the steering blocks and steering rods.

Floating Steering System.

The optional floating steering system works without affecting flex. This makes the car easier to drive in high-traction conditions, and chassis roll is reduced especially when driving through the curbs. The car also handles more consistently on bumpy tracks.
In combination with #302570 Steering Plate, the steering system can adjust to 4 different flex characteristics. Using the graphite steering plate, chassis flex is medium; when using the steering plate with aluminum stand, flex becomes stiffer for more aggressive handling and increased steering.
Thanks to the unique design of the servo holder, changing the flex of the steering system is quick & easy. There is no need for other parts, and there is no need to assemble/disassemble the servo holder.

Servo Saver.

The popular XRAY servo saver consists of 4 springs which makes the servo saver strong enough to provide the precise steering racers demand, while still being flexible enough to prevent servo damage in hard crashes. The servo saver has interchangeable bushings to fit most popular servos.

Body Posts.

Beefy 6mm thick body posts are made from special composite material that provides maximum strength but sufficient flex to reduce body post breakage in hard crashes or if the car flips over. The body supports are rounded to have a better fit and provide better support to the car body.

For ultimate tuning and adjustment, XRAY offers optional height adjustable body posts which allow independent front & rear body height adjustment by +1mm or +2mm.



Bumper.

The front of the car is protected by a composite lower bumper with an additional foam bumper made from high-density foam material. The upper graphite bumper holds the entire bumper assembly together.

Upper Clamps.

Upper clamps feature integrated centering pins to easily mount the graphite shock towers in the proper position, and more importantly these will ensure that the shock towers do not move in a crash and cause chassis tweak.

The T4F front upper clamps hold the lay shaft which keeps the design of the car very tidy and very easy for the maintenance of the car.

Made from premium Swiss 7075 T6 aluminum and anodized orange, the upper clamps have been milled to remove unnecessary material to reduce their size and weight.

ULP Shock Towers.

The shock towers are designed to be used with ULP (Ultra-Low Profile) shocks. The towers feature alignment holes for the upper clamp centering pins that ensure perfect fitment of the shock towers in exactly the same position every time they are installed, helping to eliminate tweak or uneven spring pre-tension of the shocks.

The shock mounting locations were selected to provide the best dampening characteristics and to work on all surfaces and traction conditions.

The rear shock tower features multiple positions for body post mounting depending on the body used.

Machined from premium-grade 3.0mm graphite, the shock towers are super lightweight and very compact.

ULP Shocks.

The ULP (Ultra-Low Profile) shock absorbers make the car easier to drive in chicanes and make it more resistant to traction rolling, letting the car carry more speed through high-traction sweepers. Steering response and overall cornering speed are significantly improved as well.

The shock bodies are CNC-machined from premium Swiss 7075 T6 aluminum and hardened to ensure maximum lifespan. The aluminum upper & lower nuts have a low-profile design, including ULP sealing O-ring and upper composite ball joint.

The piston set includes 3- and 4-hole pistons with 1.0, 1.1, and 1.2mm diameter holes. The pistons are molded using special processes and composites to ensure extreme roundness while maintaining maximum stiffness and durability.

Progressive Shock System.

Innovative progressive shock system for ULP touring car shocks for improved traction and steering characteristics. Shock insert has 3 triangle cuts and is used with piston without holes. The hardness of the shock is influenced not by the holes in the piston but with the insert. The insert is mounted into the shock with wider surface on the bottom of the shock and narrower on the top.

When the piston is at the bottom of the shock, it moves softer and dampening becomes harder when the piston is going to the top. This means that the shock dampening is softer in the first part of movement and becomes harder when the car is moving more. The shock inserts must always be used with pistons without holes, must be used both front & rear, and only on asphalt. The same oil is used in these insert-equipped shocks as with standard shocks.

Shock Springs.

XRAY’s full range of existing shock springs may also be used on the ULP shocks, so the T4R can still use the entire range of springs available for the T4 family of touring cars.

The 4S springs - like all other XRAY springs - are manually measured, selected, and matched into pairs to guarantee precisely equal length and damping characteristics.



Spur Gears.

Precision-molded 96 tooth, 64-pitch composite spur gear is strategically lightened to reduce rotating mass. Most popular sizes available for additional gear ratio choices.



XRAY Gear Differential.

Complete gear differential set includes composite differential case and cover with pulley. Differential gears are made from tough composite material, precision-molded composite gears combined with light aluminum hardcoated outdrives, which create a lighter and super-smooth gear differential.

When the diff is correctly built there is no need for maintenance for a very long time. There is no need to change oil on a regular basis, and there is no leakage due to the very good sealing system. The gear diff also increases on-power steering which is needed on almost all types of tracks. Works great for both carpet and asphalt tracks.

ECS Drive Shafts.

The XRAY ECS drive shafts equalize the speed between the drive shaft and the wheel. With a unique 2-piece joint between the axle and the wheel, an extreme wheel turning angle is divided into two shallower angles without causing binding. Regardless of cornering speed and wheel angle, the inner wheel will not bind or vibrate. Drive through the corner is more stable, more precise, and easier.

With the ECS drive shafts, wheel vibrations and noise are decreased to minimum, steering is increased, and cornering speed & smoothness are noticeably increased.

Drive shafts are exclusively manufactured from special world-renowned, HUDY Spring Steel™. The drive shafts are strategically lightened – see the hollow end of the dog bone – to guarantee the lowest possible weight without compromising strength or durability. The drive shafts have been additionally hand-ground for maximum precision and to provide true rotation and unbinding drivetrain operation



Wheel Hubs.

Ultra-lightweight wheel hex drive hubs are CNC-machined from 7075 T6 black-coated aluminum. These ultra-true hex hubs are specially machined to reduce rotating weight while guaranteeing wobble-free wheel mounting.

Optional offsets are available (-0.75, +0.75, +1.5mm).

Bearing Holders.

The front bulkheads feature integrated belt-tension adjustment through the use of adjustable eccentric bearing holders, eliminating the need for a separate belt tensioner to reduce friction and improve drivetrain efficiency.

The eccentric bearing holders also allow for differential height adjustment. By rotating the diff eccentric holders 180°, the height of the diff can be adjusted by 1mm.

Integrated Adjustments.

Bulkheads feature integrated belt-tension adjustment through the use of adjustable bearing eccentric holders, eliminating the need for a separate belt tensioner. The eccentric bushings allow also diff height adjustment. By rotating the diff eccentric holders, the height of the diff can be adjusted by 1mm.

Anti-roll Bars.

The wobble-free anti-roll bar system is mounted to the front & rear bulkheads via bearings for extra-smooth movement and quick & easy changes and adjustment. The roll bars rotate in ball-bearings for maximum precision and free movement. Anti-roll bar height is adjustable via a screw.

The complete range of different anti-roll bar thicknesses is designed to work with the ball-bearing roll bar mounting system. Front 1.3mm and rear 1.3mm anti-roll bars are included as standard. Anti-roll bars have laser-engraved stripes (corresponding to bar thickness) for easy identification.



Ball-Bearings.

A full set of 22 high-speed, blue-sealed and steel ball-bearings are used throughout the drivetrain, steering and anti-roll bars to ensure maximum efficiency. All of the bearings are degreased and oiled with Aero Shell® Fluid 12 for maximum smoothness and long life.

The bearings used in steering blocks have been specially selected to reduce unsprung weight and maximize drivetrain efficiency.

Turnbuckles.

Aluminum adjustable turnbuckles are CNC-machined from 7075 T6 material with a stylish black coating. These turnbuckles are used for front and rear upright linkages as well as for the servo saver. The aluminum turnbuckles are lighter than steel to help decrease the overall weight of the car.

Chassis Balance.

Chassis design focuses on balanced weight distribution and weight transfer. The chassis features pre-drilled holes for additional weights for optimum car balancing. Centerline holes are pre-drilled for easy balancing with the HUDY Chassis Balancing Tool #107880.

Graphite Grease.

Premium HUDY Graphite Grease is a high-performance, advanced-technology semi-fluid lubricant which incorporates both extreme pressure additives and finely-dispersed graphite for load carrying.

It is intended primarily for the lubrication of rotating parts and loaded gears. In addition to providing outstanding load carrying, it is formulated to have excellent adhesion and resistance to "fling-off" under extreme conditions. The grease reduces wear and increase the parts life.  #106210​ HUDY Graphite Grease.

Adjustment Possibilities.

The extensive and impressive range of adjustment possibilities includes: caster, camber, toe, anti-dive, anti-squat, ride height, downstops, track-width, lower roll center, upper roll center, roll center positions, steering roll center, wheelbase, Ackermann, adjustable shocks, adjustable in-line flex adjustment, adjustable front chassis flex, adjustable diff.



XRAY Instruction Manual.

XRAY instruction manuals have become the industry standard, being simply the best manuals you will ever get with an RC model car. Whether you are a first-time builder or an experienced racer, all the instructions are straight-forward and easy to understand. The full-color Instruction Manual contains large 3D illustrations that show all assembly details in the clearest possible way.

XRAY VIP Customer Treatment.

Owning an XRAY model racing car is an experience on its own. Not only will you own the most premium luxury model racing car in the world, but you will also become a member of the prestigious family of XRAY owners with direct support and service from the XRAY factory. XRAY brings you the most up-to-date RC Web site on the Internet, with daily racing news and latest product developments.

If you have any questions, problems or comments, you can ask the XRAY Support Team or any XRAY Factory Team Driver on the XRAY Support Forum. You can even upload your own set-up sheets or download from the thousands of different set-up sheets available from all around the world at the exclusive XRAY Virtual Set-up Sheet Database, the world’s largest set-up sheet database. And that is only the start of the VIP treatment you get by joining Team XRAY.
